X-Ray UPS for Medical Imaging Equipment

Most fixed X-ray and CT systems in U.S. healthcare facilities operate on 208V or 480V three-phase power, while portable units often run on standard 120V or 208V single-phase circuits. The exact requirement depends on the manufacturer's specifications, and UPS systems protecting these loads must match the facility's voltage and phase configuration to avoid compatibility issues.

The voltage applied across an X-ray tube, known as kilovoltage peak (kVp), typically ranges from 40 to 150 kVp depending on the diagnostic application \u2014 lower settings for mammography and extremity imaging, higher settings for chest and abdominal radiography or CT. This tube voltage is distinct from the facility's incoming line voltage that powers the generator and support systems.

Imaging systems are highly sensitive to voltage sags, harmonics, and outages, which can corrupt scans, damage sensitive electronics, or halt procedures mid-exam. A properly sized UPS, such as Eaton's online double-conversion platforms, filters incoming power and provides instant transfer to battery, protecting both patient safety and expensive imaging hardware from power-quality issues.

UPS batteries supporting medical imaging equipment typically reach end of life within 3-5 years, depending on usage cycles, ambient temperature, and battery chemistry. Lithium-ion options, such as Eaton's online double-conversion lithium-ion platforms, offer longer lifecycles and faster recharge than traditional VRLA batteries, reducing replacement frequency and maintenance overhead.

Online double-conversion UPS topology, such as Eaton's online double-conversion platforms, is generally recommended for X-ray and CT equipment because it continuously regenerates clean output power and provides zero transfer time during outages. This eliminates the switching delay found in line-interactive units, which can be critical for sensitive imaging electronics and exposure timing.

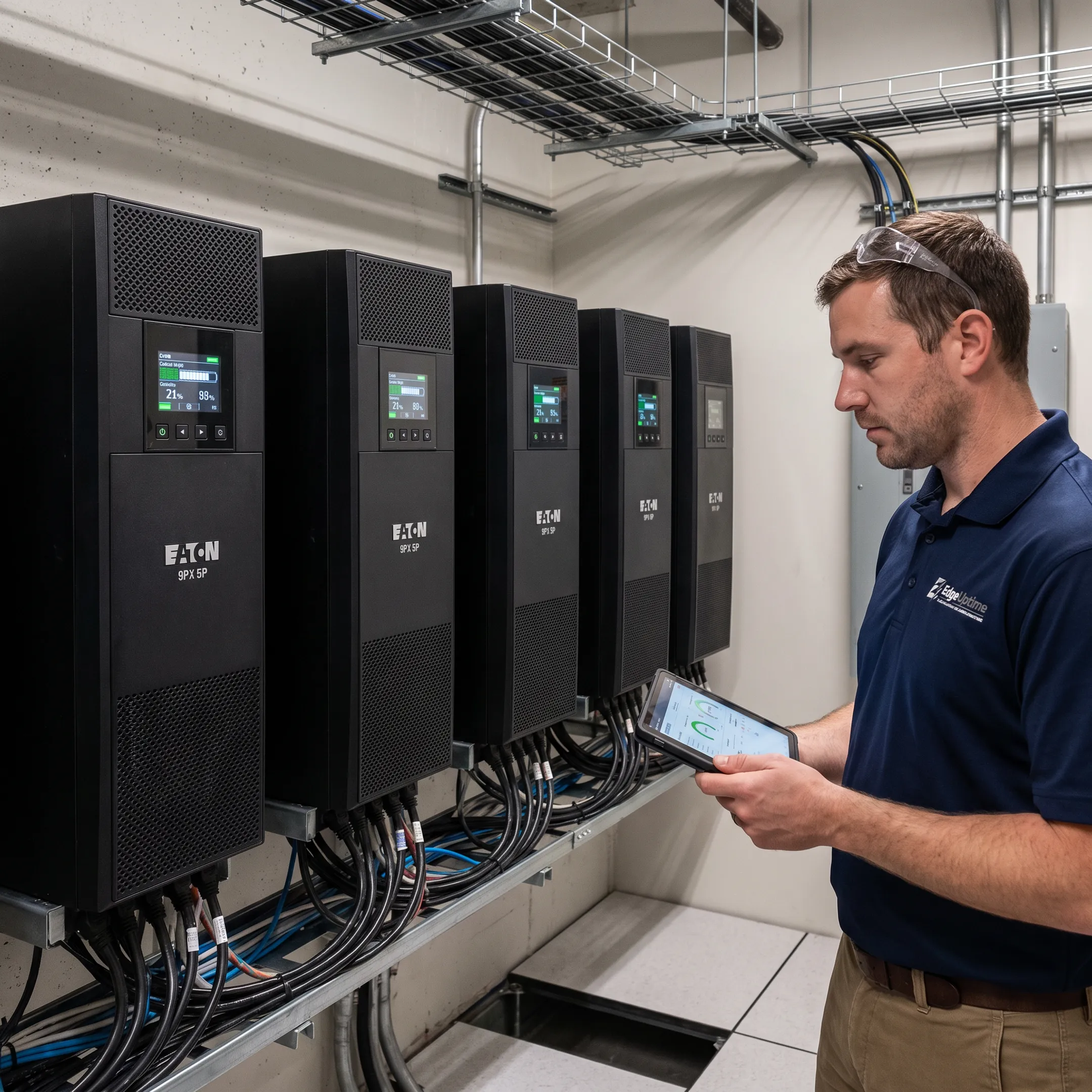

Yes, larger three-phase enterprise UPS platforms, such as Eaton's three-phase modular platforms, can be scaled and modularly configured to support multiple imaging suites, CT rooms, or a mixed fleet of diagnostic equipment from a centralized power protection system, simplifying maintenance and monitoring across a facility.
